What is an IoT Network?
Internet of Things (IoT) systems and devices need a communication network that can support the transmission of data from and to the field-deployed devices and sensors. LoRaWAN is currently the dominant communication protocol globally for IoT deployments.
What is LoRaWAN?
LoRaWAN is a Low Power Wide Area Network (LPWAN) protocol, built on top of Semtech’s LoRa wireless RF and promoted by the LoRa Alliance, that supports long range, low-cost, mobile, energy-efficient, deep indoor penetration and secure end-to-end bi-directional communication for Internet of Things (IoT) and Machine to Machine (M2M) applications. Running on unlicensed ISM frequencies worldwide, this connectivity is specifically dedicated to IoT use cases and allows cost efficient deployments and operations for both public or private networks.
CyRIC IoT Network
CyRIC holds more than 5 years experience in the deployment and operation of IoT Networks. Our experience has lead us to the adaptation of LoRaWAN as the preferred communication protocol as it encloses numerous advantages compared to the other available communication protocols in the deployment and operation of IoT Solutions and devices.
LoRaWAN Benefits.
Long Range.
LoRaWAN provides robust long-range communication (up to 40 km in rural areas and up to 3 km in urban environment, and depending on gateways performances) between sensors on the field and radio network stations.
Native Geolocation.
LoRaWAN offers secure network-based geolocation to locate any LoRa-enabled fixe or mobile end-device. LoRa uses Time Differential on Arrival and other hybrid techniques to determine location without using extra processing power on the end-device side. This native capability, unlike GPS, does not increase energy consumption, nor needs additional costly hardware component.
Open Standard.
LoRaWAN standard leverages an open protocol approach, led by the LoRa Alliance which federates the specification, development and deployment of the standard, elaborates certification guides, and ensures interoperability between all radio infrastructure providers, core network vendors and end-devices designers and manufacturers.
Low Power.
LoRaWAN was designed to specifically reduce the power consumption and extend the battery lifetime of connected sensors, up to 10+ years.
Free Unlicensed Band.
LoRaWAN networks operates on license-free and cost-free ISM (Industrial, Scientific, Medical) bands – EU 868 MHz, AS 923 MHz, US 915 MHz – allowing any service provider or company to deploy and operate networks without acquiring a license from the regulator.
Security.
LoRaWAN offers high scalability and capacity networks to support thousands of connected end-devices and millions of messages transmitted. This high performance is achieved by utilizing Adaptive Data Rate (ADR) and by using a multi-channel multi modem transceiver in the gateway so that simultaneous messages on multiple channels can be received.
Fully Birectional.
LoRaWAN enables fully bidirectional communications that can support many use cases that require both uplinks and downlinks, either with limited random receive windows (Class A), with limited scheduled receive slots (Class B), or with maximal and almost continuous receive slots (Class C).
Cost Efficiency.
LoRaWAN offers two future-proof layers of end-to-end security: one for the network that ensures mutual authentication between a LoRaWAN end-device and the LoRaWAN network as part of the network join procedure. This grants that network traffic has not been altered, only comes for a legitimate end-device authorized to join an authentic network, is not comprehensible to eavesdroppers, and has not been captured and replayed by rogue actors.
Deep Indoor Penetration.
LoRa radio modulation allows deep indoor penetration, making it possible to reach energy meters, controls modules in elevators shafts, or parking sensors located in basements and undergrounds.
LoRaWAN Network Infrastructure
A LoRaWAN network is deployed in a star of stars network architecture whereby end-devices are not associated with a specific gateway but transmit data to multiple gateways within it radio range.
End-Devices.
Device manufacturers can efficiently resort to LoRa Alliance specifications and certification programs to design end-devices that will connect to LoRaWAN networks. They can also achieve a faster time to market by leveraging existing Reference Design offers proposed by some vendors, based on their expertise of LoRaWAN networks, to efficiently embed LoRaWAN connectivity in their design, get best practices to optimize device connection and data transmission on the network.
Radio Network.
LoRa Gateways, designed for outdoor and indoor use, can independently support tens of thousands of sensor end-devices and enable public and private networks deployments. The gateways support bi-directional communication and can simultaneously process messages from many LoRa-based sensor end-devices. The gateway act as packet forwarders and send packets to a network server through a backhaul connection that may use Ethernet, Wi-Fi, 3G, or 4G / LTE. LoRa gateways are less expensive compared to cellular base stations, making the increase of the network capacity really affordable by simply adding additional gateways, in an easy way. Gateways can support between 8 to 64 channels, which allows millions of messages per day processed by a network. The quality of the radio network (coverage, robustness, performance, up-time, reliability) directly depends on the quality of the gateways.

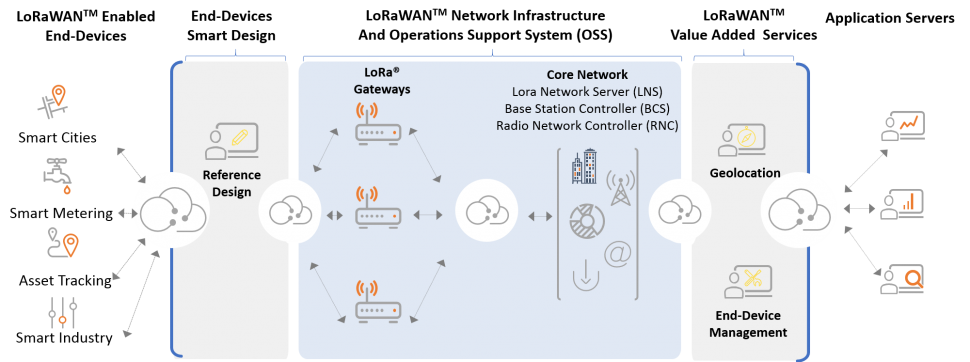

LoRaWAN Network Schema.
Core Network.
The LoRaWAN Network Server (LNS) can be hosted in the cloud or deployed in the operator premises. It processes packets received from multiple gateways, directing them to an application server. Deploying and operating a performant LoRaWAN network requests powerful tools to monitor, optimize, manage or troubleshoot the gateways, their configuration and grant the requested network QoS. Inspired by cellular network experience, some vendors are offering a full suite of management solutions Operations Support System (OSS), to efficiently orchestrate the entire network in real-time, and ensure its perfect availability for mission critical data collection. On top of LoRaWAN Network Server (LNS), Base Stations Controller (BSC) is a key set of features to remotely operate the LoRa gateways deployed on the field (settings, alerts firmware and application update, security, integrity), whereas Radio Network Controller (RNC) helps to constantly monitor and optimize radio performances and coverage of the entire network (frequencies, spectrum, coverage, power, load).
Application Servers.
The LoRaWAN Network Server (LNS) send packets to the appropriate application server which handles the customer application and treat the data to present them as relevant. Radio Access Network capabilities can also be integrated directly in applications servers and dashboards through APIs, for quickly setting up and managing a LoRaWAN network. Business owners can also enrich application server capabilities with value added services like geolocation or end-device management, to make the most of radio and core network capabilities, and create new services generating additional revenue streams.
